GuideStart here

Run a local Unity Catalog server

Start one of the docs' Docker Compose environments, a single-user Unity Catalog server on localhost:8080 on its own or with a local stand-in for Amazon S3 and a PostgreSQL metastore, and know what each one runs.

Every example in these docs runs against a local Unity Catalog server that you start with Docker Compose. The docs ship several environments, each its own download. Each runs the same single-user server on http://localhost:8080, potentially with additional services like PostgreSQL or S3 enabled.

Choose an environment

Environment	Use it for	Host ports
Minimal server	Most pages: catalogs, schemas, tables, volumes, functions, and engines on local files	8080
Server with simulated S3	S3 storage, storage credentials, credential vending, and metadata in PostgreSQL that survives a new or upgraded server container	8080, 9000

Every page's prerequisites name the environment it runs against. Run one environment at a time: they share the compose project uc-docs and the container name unitycatalog, so starting one replaces the server of another.

The commands below download each environment into uc-docs-env/ in the current folder, and the server mounts its configuration from there. On Colima and other VMs that share only your home directory, run them from a folder under your home directory, or the server fails with a not a directory mount error.

Start the minimal server

curl -fsSL https://docs.unitycatalog.io/env/unitycatalog.tar.gz | tar -xz
cd uc-docs-env/unitycatalog && docker compose up -d --wait
export UNITY_CATALOG_URL=http://localhost:8080/api/2.1/unity-catalog

The services Unity Catalog 0.7.0 runs and how clients reach them

docker compose up --wait returns once the server reports healthy. The server builds from the upstream release image, with two fixes for running on Linux.

Both environments are generated by Trestle: compose.yaml includes one file per service under modules/, and LAYOUT.md lists the routes and services. The server's part:

modules/unity-catalog/compose.yaml

# Unity Catalog
services:
  unitycatalog:
    container_name: unitycatalog
    # Built locally from the render root, tagged with the `image` knob.
    build:
      context: ./image
    pull_policy: build
    image: uc-docs-unitycatalog:0.7.0
    # The server ignores SIGTERM as PID 1.
    init: true
    restart: unless-stopped
    depends_on:
      unitycatalog-mounts:
        condition: service_completed_successfully
    secrets:
      - source: unitycatalog_server_properties
        target: /home/unitycatalog/etc/conf/server.properties
    volumes:
      - ${UC_DOCS_ROOT:-/tmp/uc-docs}:${UC_DOCS_ROOT:-/tmp/uc-docs}
    expose:
      - "8080"
    ports:
      - "8080:8080"
    healthcheck:
      test:
        ["CMD-SHELL", "wget -q --spider http://127.0.0.1:8080/api/2.1/unity-catalog/catalogs || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 12
      start_period: 15s

  # One-shot: Docker creates a missing bind source owned by root, so open the paths up for
  # the server and for host-side clients that write to the same directories.
  unitycatalog-mounts:
    image: python:3.13-alpine
    user: root
    restart: "no"
    entrypoint:
      - chmod
      - "0777"
      - "${UC_DOCS_ROOT:-/tmp/uc-docs}"
    volumes:
      - ${UC_DOCS_ROOT:-/tmp/uc-docs}:${UC_DOCS_ROOT:-/tmp/uc-docs}

modules/unity-catalog/secrets/server.properties

# Generated by trestle. A local, single-user server: authorization is disabled, so never use
# this configuration for a shared server.
server.env=dev
server.authorization=disable

Start the server with simulated S3

curl -fsSL https://docs.unitycatalog.io/env/uc-aws.tar.gz | tar -xz
cd uc-docs-env/uc-aws && docker compose up -d --wait
export AWS_ALLOW_HTTP=true
export AWS_ENDPOINT_URL=http://localhost:9000
export AWS_ENDPOINT_URL_S3=http://localhost:9000
export AWS_REGION=us-east-1
export UNITY_CATALOG_URL=http://localhost:8080/api/2.1/unity-catalog

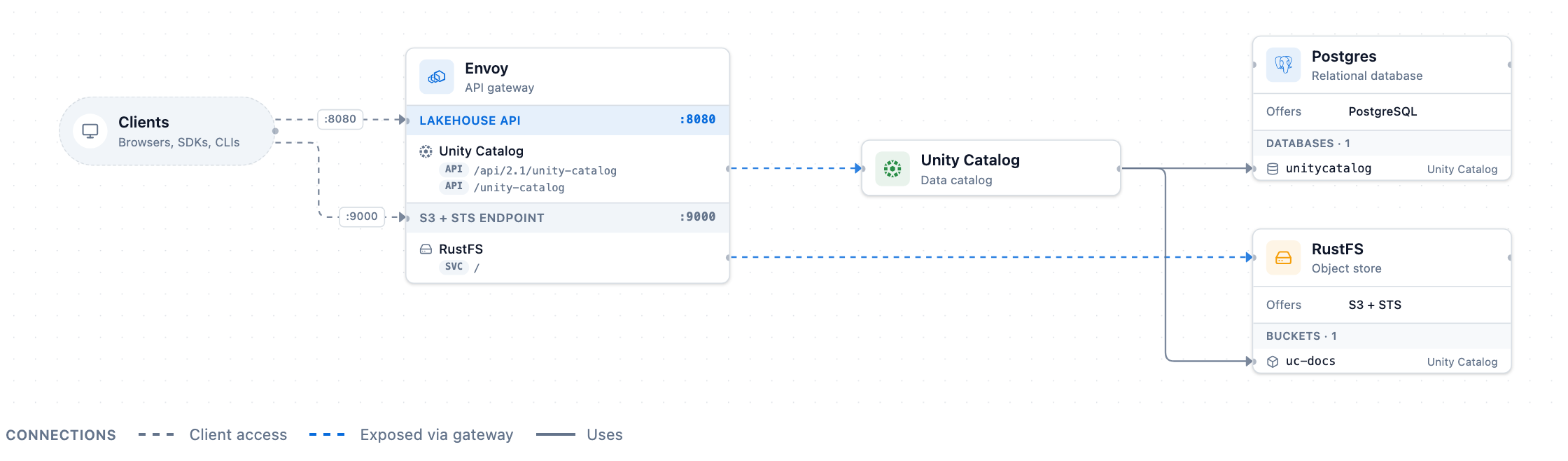

The services Unity Catalog 0.7.0 with simulated S3 and PostgreSQL runs and how clients reach them

The simulated STS enforces the session policy that the server attaches to the credentials it vends. It doesn't check IAM trust policies or external IDs, so verify those on real AWS.

The server's part, with its AWS master role and the gateway's certificates:

modules/unity-catalog/compose.yaml

# Unity Catalog
services:
  unitycatalog:
    container_name: unitycatalog
    # Built locally from the render root, tagged with the `image` knob.
    build:
      context: ./image
    pull_policy: build
    image: uc-docs-unitycatalog:0.7.0
    # The server ignores SIGTERM as PID 1.
    init: true
    restart: unless-stopped
    depends_on:
      db:
        condition: service_healthy
      rustfs-init:
        condition: service_completed_successfully
      gateway-certs:
        condition: service_completed_successfully
      unitycatalog-mounts:
        condition: service_completed_successfully
    secrets:
      - source: unitycatalog_server_properties
        target: /home/unitycatalog/etc/conf/server.properties
      # Points the metadata store at the relational_db provider instead of the built-in H2.
      - source: unitycatalog_hibernate_properties
        target: /home/unitycatalog/etc/conf/hibernate.properties
    environment:
      # Trust the gateway's local CA, which answers the AWS STS/S3 hostnames UC calls.
      JAVA_TOOL_OPTIONS: -Djavax.net.ssl.trustStore=/certs/truststore.p12 -Djavax.net.ssl.trustStorePassword=changeit
    volumes:
      - gateway-certs:/certs:ro
      - ${UC_DOCS_ROOT:-/tmp/uc-docs}:${UC_DOCS_ROOT:-/tmp/uc-docs}
    expose:
      - "8080"
    healthcheck:
      test:
        ["CMD-SHELL", "wget -q --spider http://127.0.0.1:8080/api/2.1/unity-catalog/catalogs || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 12
      start_period: 15s

  # One-shot: Docker creates a missing bind source owned by root, so open the paths up for
  # the server and for host-side clients that write to the same directories.
  unitycatalog-mounts:
    image: python:3.13-alpine
    user: root
    restart: "no"
    entrypoint:
      - chmod
      - "0777"
      - "${UC_DOCS_ROOT:-/tmp/uc-docs}"
    volumes:
      - ${UC_DOCS_ROOT:-/tmp/uc-docs}:${UC_DOCS_ROOT:-/tmp/uc-docs}

modules/unity-catalog/secrets/server.properties

# Generated by trestle. A local, single-user server: authorization is disabled, so never use
# this configuration for a shared server.
server.env=dev
server.authorization=disable

# The master identity UC signs AWS calls with: it assumes a storage credential's role to vend
# temporary credentials. The storage itself (credentials, external locations) is registered in
# UC's database, not here. No endpoint override, which UC doesn't support.
aws.accessKey=rustfs-root
aws.secretKey=rustfs-root-secret
aws.region=us-east-1
aws.masterRoleArn=arn:aws:iam::123456789012:role/uc-master

Pages that use this environment:

The server container mounts one directory, UC_DOCS_ROOT (default /tmp/uc-docs), at the same path as on your machine. A file:// location under it then means the same files to the server and to your client. Pages that write tables or volume files on local storage use it.

Docker Desktop shares /tmp with containers by default. Colima and some other VMs share only your home directory. On those, pick a folder under your home directory and set it before you start the server, in every terminal you use:

export UC_DOCS_ROOT=$HOME/uc-docs
mkdir -p "$UC_DOCS_ROOT"
docker compose up -d --wait

Run the `uc` CLI

The uc command-line tool ships inside the server image. Define a shell function that runs it in the container, from any folder:

first_catalog.shFull script

uc() { docker exec unitycatalog bin/uc "$@"; }

Then uc catalog list lists the catalogs. The CLI connects to http://localhost:8080 by default.

Stop or reset the server

Stop an environment from the folder you started it in, uc-docs-env/unitycatalog or uc-docs-env/uc-aws, so that its other services stop too:

docker compose down

The minimal server keeps its metadata in the container, so stopping it discards every catalog you created and restores the samples. The S3 environment keeps its metadata and bucket in Docker volumes; add -v to its down command to delete those as well. Files you wrote under UC_DOCS_ROOT stay on your machine.

Next steps

Create your first catalog uses the minimal server from the command line.
Use the Python client, Spark, or DuckDB to connect to it.
